LinksWell TS-FDPU12-1AK-6H

LinksWell TS-FDPU12-1AK-6H - 2015-2020 Ford F150 2017-2022 F250/F350 Android 11.0 w/HDMI Out, HDMI In w/optional Adapter

GEN VI T-Style Ford F-Series Pickup 12.1" 2K HD Screen Radio/Tablet w/Qualcomm Octa-core

Description

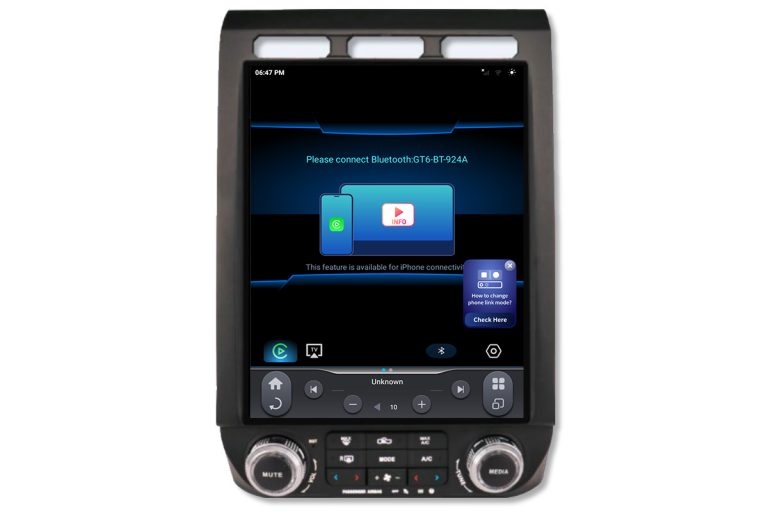

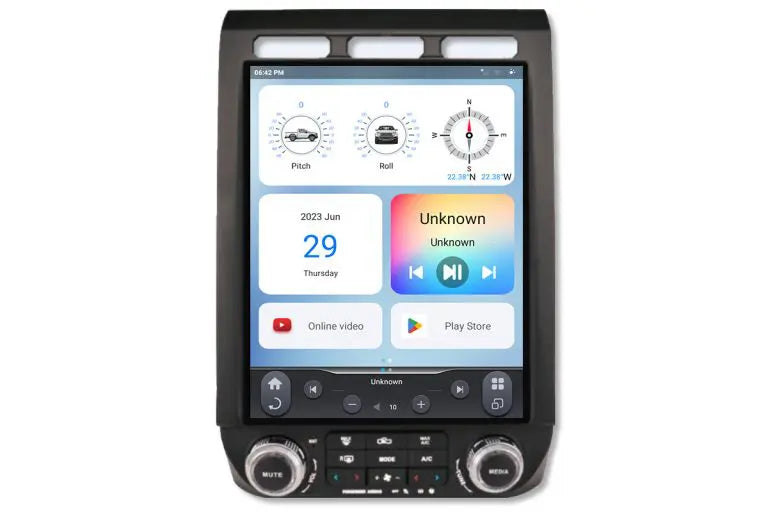

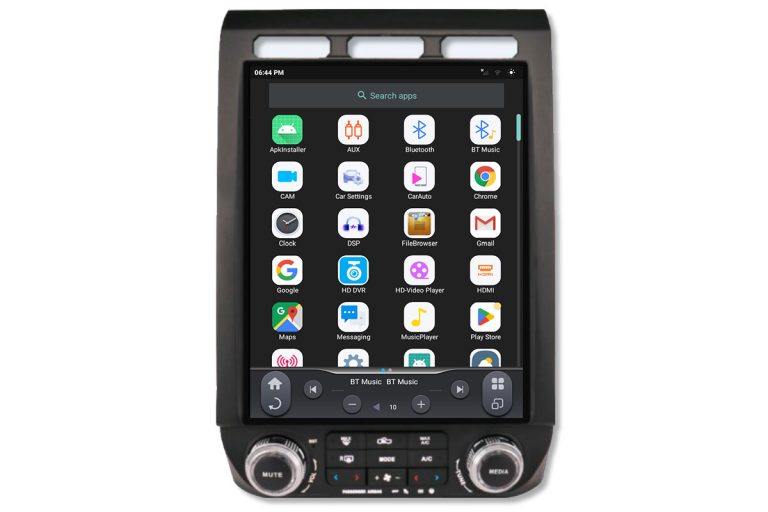

12.1″ Android Screen Radio

Multi-Function On-Screen Knob

• 12.1″ HD touch screen Android Tablet
• Android 11 w/Fast Boot
• Qualcomm QCM6125 8Core Processor
  • 8GB Ram
  • 128GB Memory
• Google Play Store App Downloads
• Multi-Function on screen X KNOB
  • Volume, Fan Speed, Temp, etc.
• **USING WIFI** run Google Maps, WAZE or other Data based navigations
• AM/FM Radio w/RDS (12 FM presets, 6 AM presets, plus My Favorite Stations )
• 3 USB inputs (1 factory input, 1 auxiliary)
• BT 5.0 DR/EDR/BLE
  • Bluetooth may work with certain Bluetooth controlled devices
• USB Music and Video player w/HD Video and Video in motion options
• HDMI Output
• HDMI Input
  • REQUIRES PART NUMBER LW-TSHMDI-IN
• 4X50 Watt built-in amplifier w/DSP & EQ
• 4 Volt RCA Preouts (Front, Rear, Sub)
• SPDIF Output
  • Optical
• EQ
  • 16 Band
  • Low Pass/High Pass Filter
  • Subwoofer
    • Filter
    • Gain Control
• PhoneLink System (Apple & Android compatible)
  • Wireless Apple CarPlay
  • Wired / Wireless Android Auto
  • AirPlay
• On Screen/touch screen climate controls – if equipped A/C, Dual Zone Climate, Seat heaters/coolers, defroster, etc.
  • X-KNOB
• 3 Camera inputs (Front, rear, side)
  • Retains Factory reverse Camera
  • Reatins factory 360 camera
    • If factory 360 is controlled by the factory touch screen part number TS-FD360ADPT is required to retain all functions
  • Optional Multi-Cam adapter (TS-FDMCADPT) available to add 6 Camera inputs with onscreen access and CanBus triggers
• Display factory parking sensors (if equipped)
• WIFI for web browser, and streaming apps
  • 2.4 GHz
  • 5G

*F-150’s EQUIPPED WITH B&O REQUIRE PART# TS-FDBOADPT

**ALL 2020-UP SUPER DUTY’S REQUIRE EITHER HARNESS TS-FDSDHARN for Non B&O TRUCKS or TS-FDSDBOADPT FOR SUPER DUTY’S EQUIPPED B&O

***May not be compatible with other aftermarket CANBUS devices that are installed in the vehicle….. ie tuners, start stop bypasses, OBD devices, speed calibrators etc.

Weight: 4.25 lb
