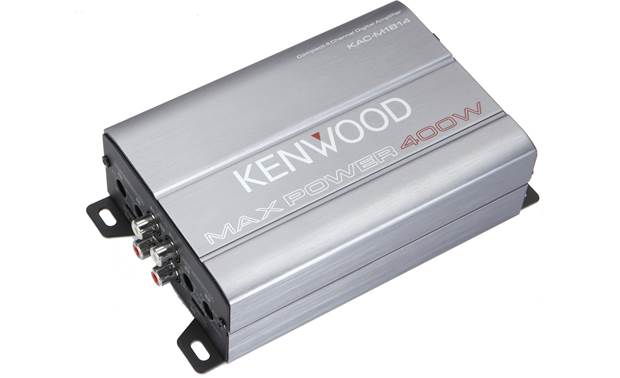

Kenwood KAC-M1814 - Compact 4-Channel Digital Amplifier
- Regular Price
- $200.00
- Sale Price
- $200.00
- Regular Price
- $230.00
Sold Out
- Unit Price
- Translation missing: en.general.accessibility.unit_price_separator
Shipping calculated at checkout.
Kenwood KAC-M1814 - Compact 4-Channel Digital Amplifier
4 Channel Compact Power Amplifier, Conformal Coated, 400W Max Power
- Peak Power 400W
- Conformal Coating for Marine and Other use.
- Speaker Level Input with Signal Sensing Turn on.
- Bridgeable Connection.
- Compact design ( W)5-11/16" x (H)1-3/4" x (D)3-7/8"
KAC-M1814 Compact Class-D amplifier supports louder volume for Car, Marine and Motorsports users with low-noise.
Plastic covered connector helps to keep out water and dust.
Conformal Coating provides vibration resistance and helps prevent the PCB from rusting.
Pre-amp and Power-amp sections are separated to reduce radiation noise.
General Features:
| Max Power | 400W |
|---|---|
| RMS Power | 45W x 4 (4Ω） |
| 45W x 4 (2Ω） | |
| 90W x 2 (Bridged) | |
| S/N | Signal to Noise Ratio: 98 dB |
| Size | (W)5-11/16” x (H)1-3/4” x (D)3-7/8” |
| Low Pass Filter | 50Hz-200Hz, -12dB/oct (A/B) |
| High Pass Filter | 50Hz-200Hz, -12dB/oct (A/B) |
| Speaker Level Input | |
| Signal Sensing Turn-On | |
| Variable High & Low Pass Filter | |
| Bridgeable | |
| Conformal Coating |
