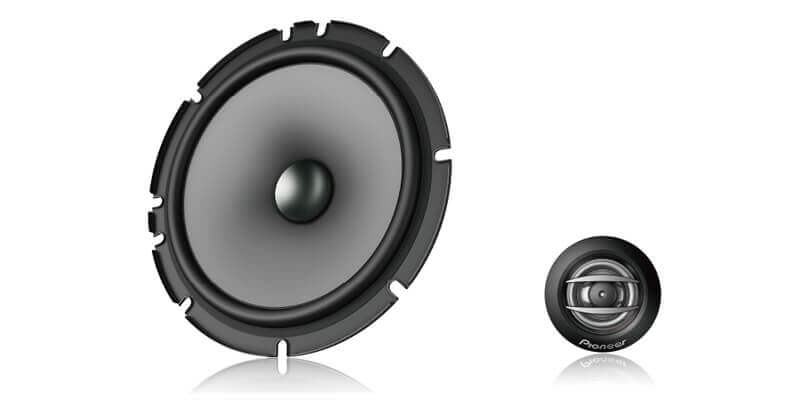

Pioneer TS-A652C

6-1/2" 2-Way Component System

• 350 Watts Max Power (80 Watts Nominal)
• 20 mm polyimide (PI) hard dome tweeter
• 1-5/8" cellulose fiber cone midrange
• 6-1/2" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction

Easily Upgrade to High Performance

Pioneer’s A-series sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.

Easy Installation

Included with the component system are 6-1/2" multi-fit installation adapters that expand flexibility and improve acoustic performance and also included are tweeter mounts for surface mounting, flush mounting and specially designed multi-fit adapters for mounting in original equipment (OE) tweeter locations. With the integrated/in-line crossover network, you increase installation flexibility without the need of an outboard module.

OPEN & SMOOTH

Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.

CarSoundFit App

Pioneer’s CarSoundFit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: convince yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.

System Type
2-way Component
Sound Pressure Level (Sensitivity)
85 dB (+- 1.5dB)
Frequency Range
34 Hz to 49 kHz
Continuous Power Handling (RMS)
80 Watts
Maximum Peak Power Handling
350 Watts
Nominal Impedance
4 ohms
